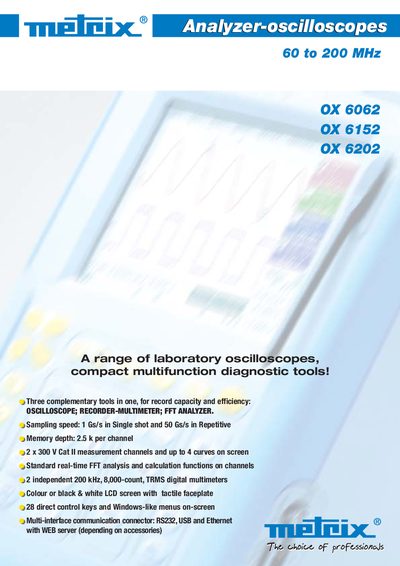

The OX 6000 series oscilloscopes are three-in-one high-performance oscilloscopes that come with an oscilloscope, recorder and spectrum analyzer.
The OX 6000 series from Metrix combines an oscilloscope, recorder‑multimeter and FFT analyzer in a compact, lightweight instrument. It offers fast sampling, high‑resolution 10‑bit conversion and a touch‑screen interface with Windows‑like menus, making it easy to set parameters and view results.
Key features include a 1 Gs/s single‑shot and 50 Gs/s repetitive sampling speed, up to 200 MHz bandwidth (OX 6202), 28 direct‑access keys, a 5‑inch colour or B&W LCD, and multiple communication ports (RS232, USB, Ethernet with web server). The instrument also provides 19 automatic measurements, FFT analysis, and optional accessories such as probes and network printers.
| Sampling speed | 1 Gs/s single‑shot, 50 Gs/s repetitive |
|---|---|
| Memory depth per channel | 2.5 k |
| Number of input channels | 2 channels – 300 V/CAT III |
| Display | 5" 7‑colour or B&W LCD, 320 × 240 |
| Input dynamic range | 2.5 mV to 10 V/div |
| Communication interfaces | RS232, USB, Ethernet (10 MB) with web server |
| Multimeter resolution | 8 000‑count, TRMS |
It can sample at 1 Gs/s in single‑shot mode and 50 Gs/s in repetitive mode.
The front panel provides 28 direct‑access controls and shortcuts.
They include RS232, USB and Ethernet with a built‑in web server.
