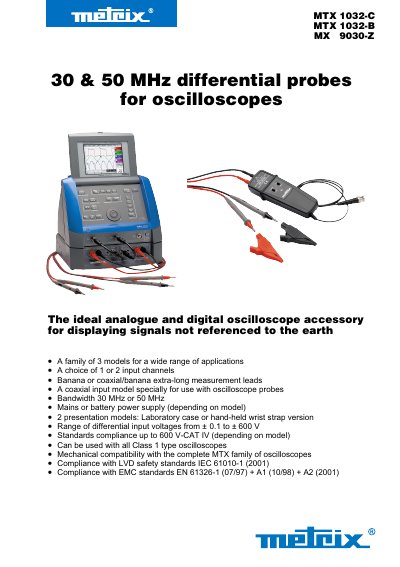

The document describes the MTX 1032-C, MTX 1032-B, and MX 9030-Z models of analog and digital oscilloscope accessories, which are ideal for displaying signals not referenced to the earth. These accessories feature 1 or 2 input channels, banana or coaxial/banana extra-long measurement leads, a coaxial input model specially designed for oscilloscope probes, bandwidth of 30 MHz or 50 MHz, mains or battery power supply (depending on the model), two presentation models (laboratory case or hand-held wrist strap version), a range of differential input voltages from ± 0.1 to ± 600 V, compliance with standards such as LVD safety standards IEC 61010-1 (2001) and EMC standards EN 61326-1 (07/97) + A1 (10/98) + A2 (2001), and mechanical compatibility with the complete MTX family of oscilloscopes.
The MTX series differential probes (MTX1032-C, MTX1032-B, MX9030-Z) are accessories for analogue and digital oscilloscopes, enabling measurement of signals that are not referenced to earth ground.
They offer 1 or 2 input channels, bandwidth of 30 MHz or 50 MHz, selectable voltage ratios, and can be powered by mains or a 9 V battery. The probes are supplied in laboratory case or hand‑held wrist‑strap versions and comply with IEC 61010‑1 safety and EN 61326‑1 EMC standards.
| Bandwidth | 30 MHz or 50 MHz |
|---|---|
| Number of Channels | 2 differential channels (MTX1032-C) / 1 differential channel (MX9030-Z) |
| Voltage Ratios | 1/10 & 1/100 (MTX1032-C) / 1/20 & 1/200 (MTX1032-B) |
| Accuracy of Attenuations | ± 3 % at 1 kHz |
| Power Supply | 230 VAC mains or 9 V battery (model dependent) |
| Dimensions (Laboratory case) | 270 × 250 × 63 mm |
| Weight (Laboratory case) | 1.2 kg |
The probes provide either 30 MHz or 50 MHz bandwidth depending on the model.
Depending on the model they can be powered from a 230 VAC mains supply or from a 9 V battery.
The laboratory case version measures 270 × 250 × 63 mm and weighs about 1.2 kg.
