Key facts
- Brand
- Metrix
- Model
- OX 7042
- Documents
- 3
- Languages
- EN
- Last added
- 2012-05-03
Start here

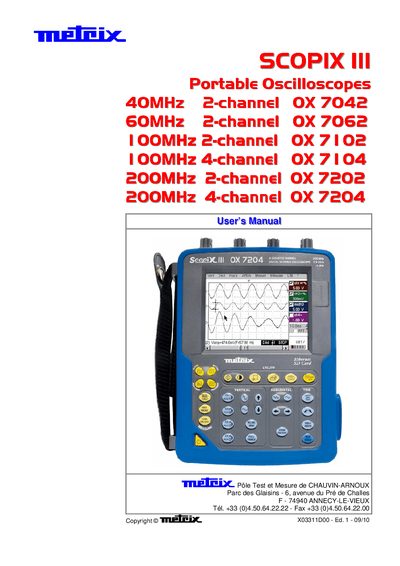

metrix OX 7042/7046/7102/7104/7202/7204 SCOPIX III Portable Oscilloscopes User's Manual
This manual introduces the SCOPIX portable digital oscilloscopes, covering safety standards, environmental limits, and basic handling. It lists the six models in the OX series, their bandwidths, sampling rates, and common features such as a Micro‑SD card slot and optional measurement modes.
The document details the instrument’s menu structure (Vertical, Trigger, Horizontal, Display, Measurement, Memory, Utilities, Help), explains the various operating modes (Oscilloscope, Multimeter, Harmonic Analysis, Recorder), and provides information on network functions like HTTP/FTP servers, firmware updates, and virtual printers. Technical specifications and mechanical data are given in dedicated chapters, followed by an index for quick reference.
Metrix OX 7042 specifications
| Bandwidth | 40 MHz – 100 MHz |
|---|---|
| Maximum Sampling Rate | 1 Gs/s single‑shot, 50 Gs/s ETS |
| Memory Depth | 50 k samples per channel |
| Measurement Channels | 2 or 4 isolated channels, 600 V CAT III |
| Input Voltage Rating | 600 V CAT III |
| Multimeter Function | 2 or 4 DMMs, TRMS, 8 000 counts, 200 kHz bandwidth |
| Display | Colour or monochrome LCD touch screen, 320 × 240 pixels |
| Power Supply | 98‑264 V, 47‑63 Hz, < 15 W, NiMH batteries |
| Dimensions | 265 × 195 × 56 mm |
| Weight | 1.9 kg with batteries |
| IP Rating | IP51 (IP41 for OX7104) |
All Metrix OX 7042 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum sampling rate of the OX series?
The instrument can sample at up to 1 Gs/s in single‑shot mode and 50 Gs/s in equivalent‑time sampling.
How many measurement channels does the OX series provide?
It offers either 2 or 4 isolated measurement channels, each rated for 600 V CAT III.
What safety standard does the OX series comply with?
The OX series complies with safety standard NF EN 61010‑1 (2001) and features double insulation.
From: metrix OX 7042/7046/7102/7104/7202/7204 SCOPIX III Portable Oscilloscopes User's Manual
