MTX series oscilloscopes are smart instruments. Innovative design ensures unrivalled comfort and efficiency, Windows-like environment and mouse piloting, lightweight compact case, functional zones that are at least twice as large as those of classic instruments. Display with unprecedented dimensions and legibility, multi-directional colour LCD screen, technological innovations that for the first time ever combine all the vital functions necessary to the user in a single instrument, 100% digital calibration for accuracy and reduction of operation costs, versions that are entirely programmable in accordance with the SCPI protocol

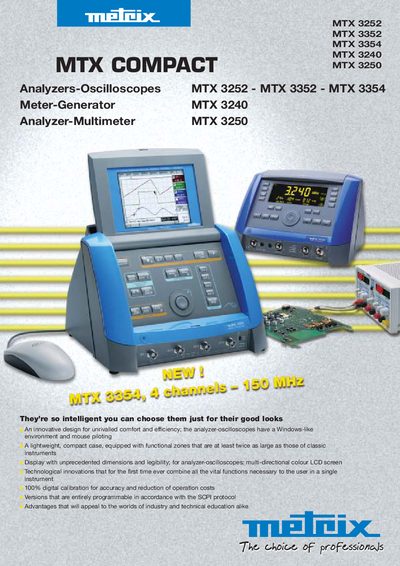

The Metrix MTX family offers a range of compact analyzer‑oscilloscopes (MTX 3252, 3352, 3354), a stand‑alone meter‑generator (MTX 3240) and a multifunction multimeter‑analyzer (MTX 3250). All models feature a Windows‑like user interface, mouse control, and optional Ethernet/HTML server for networked operation. Designed for both industry and technical education, the instruments provide high‑performance measurement functions while remaining lightweight and portable.
Key specifications include up to 150 MHz vertical bandwidth, 10‑bit vertical resolution, 50 k‑point memory depth, and sampling rates up to 100 GS/s (repetitive). Communication options cover RS‑232, Centronics, USB and Ethernet, with SCPI‑compatible programmable control. The series is built to IEC 61010‑1 safety and NF EN 61326‑1 EMC standards, and is supported by optional software and data‑logger modules.
