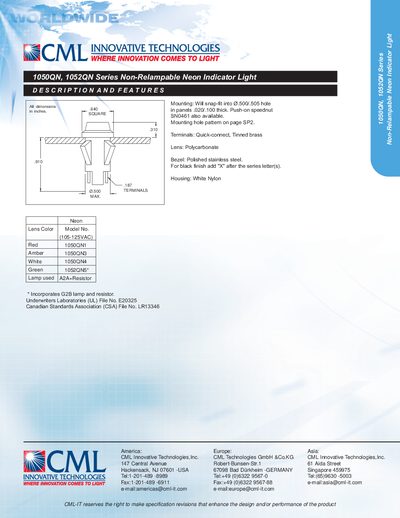

1050QN, 1052QN Series Non-Relampable Neon Indicator Light
The 1050QN and 1052QN series neon indicator lights are designed for easy installation with a snap‑fit mounting system that fits @.500/.505 holes in panels .020/.100 thick and includes a push‑on speednut. They incorporate a G2B lamp and resistor, and are available in red, amber, white, and green lens colors.
Terminals are quick‑connect and tinned brass, while the lens is made of polycarbonate, the bezel of polished stainless steel, and the housing of white nylon. The product meets UL File No. E20325 and CSA File No. LR13346 certifications.
| Mounting hole size | @.500/.505 |
|---|---|
| Supported panel thickness | .020/.100 inches |
| Terminal type | Quick‑connect, tinned brass |
| Lens material | Polycarbonate |
| Bezel material | Polished stainless steel |
| Housing material | White Nylon |
| UL certification | E20325 |
| CSA certification | LR13346 |
| Lens colors and model numbers | Red 1050QN1, Amber 1050QN3, White 1050QN4, Green 1052QN5 |
It uses a snap‑fit mounting that fits @.500/.505 holes in panels .020/.100 thick and includes a push‑on speednut.
The indicator lights have quick‑connect, tinned brass terminals.
The lens is made of polycarbonate.
Red (1050QN1), Amber (1050QN3), White (1050QN4), and Green (1052QN5) are available.
