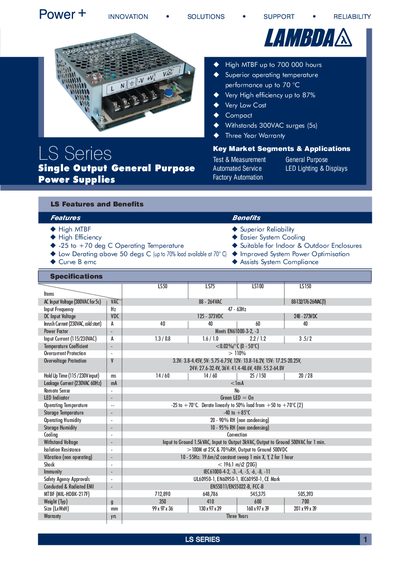

LS SERIES 1 LS Series Single Output General Purpose Power Supplies, High MTBF, Superior Reliability, High Efficiency, Low Cost, Withstands 300VAC Surges, Three Year Warranty, Suitable for Test & Measurement, General Purpose Automated Service, LED Lighting & Displays, Factory Automation
The LS Series from Lambda (a TDK group) offers single‑output general‑purpose power supplies for test & measurement, LED lighting, factory automation and other applications. The series includes a range of output voltages from 3.3 V to 48 V and supports both 115 VAC and 230 VAC input.
Key benefits include a high MTBF of up to 700 000 hours, very high efficiency up to 87 %, and an operating temperature range of –25 °C to +70 °C. The units are compact, can withstand 300 VAC surges for 5 s, and come with a three‑year warranty.
| MTBF | up to 700,000 hours |
|---|---|
| Maximum efficiency | up to 87% |
| Operating temperature range | -25 °C to +70 °C |
| Available output voltages | 3.3 V, 5 V, 12 V, 15 V, 24 V, 36 V, 48 V |
| Warranty | Three years |
The LS Series has a high MTBF of up to 700,000 hours.
The power supplies achieve up to 87 % efficiency.
They operate from –25 °C to +70 °C.
