VLF4012A is a magnetic shielded SMD inductor produced by Panasonic. It has the characteristics of small size, low height and wide applicability. It is suitable for portable DC/DC converter lines and other occasions.
The VLF4012A is a miniature SMD inductor from TDK's VLF series, offering a low profile of 1.2 mm max height and a compact mount area of 3.5 × 3.7 mm. It features a high‑magnetic‑shield construction for EMC protection and is available in lead‑free, tape‑mountable packages.

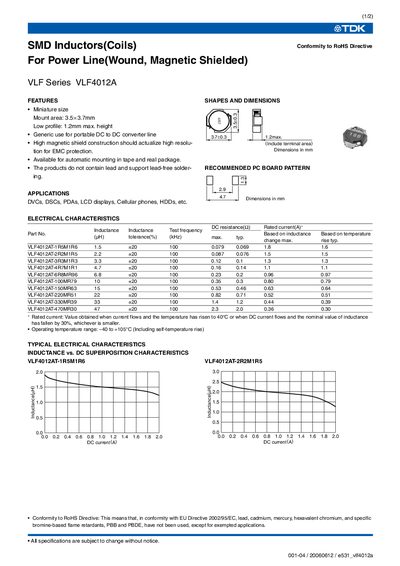

The datasheet lists detailed electrical characteristics for multiple inductance values, typical inductance vs. DC current curves, and recommended PCB patterns. It also confirms RoHS compliance and provides a test circuit for verification.
| Mount area | 3.5 × 3.7 mm |
|---|---|
| Maximum height | 1.2 mm |
| Operating temperature range | 40 °C to +105 °C |
| RoHS compliance | Conforms to RoHS Directive |
| Rated current (VLF4012AT-1R5M1R6) | 0.079 A |
It is suitable for DVCs, DSCs, PDAs, LCD displays, cellular phones, HDDs, and similar portable devices.
The maximum height is 1.2 mm.
Yes, the product does not contain lead and supports lead‑free soldering.
Yes, it conforms to the RoHS Directive.
