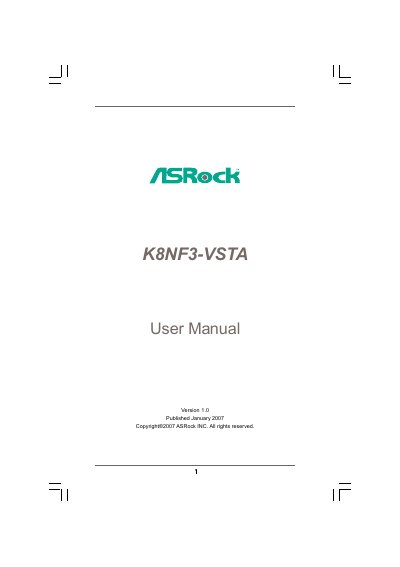

This manual introduces the functions and usage methods of ASRock K8NF3-VSTA motherboard.
This manual introduces the ASRock K8NF3-VSTA motherboard, its package contents, hardware specifications, and minimum system requirements. It guides users through CPU, memory, expansion slot, and connector installation, as well as driver and operating‑system setup.
The document also covers the BIOS Setup Utility, including menu navigation, hardware monitoring, security settings, and boot configuration, plus software support details such as the Support CD, drivers, and utilities. This manual is written in Chinese.
| Form Factor | ATX (12.0‑in x 7.5‑in, 30.5 cm x 19.1 cm) |
|---|---|
| CPU Socket | Socket 754 for AMD Athlon 64 and Sempron processors |
| Chipset | NVIDIA nForce3 250 |
| Memory | 2 DDR DIMM slots, DDR400/333/266, max 2 GB |
| Expansion Slots | 4 PCI slots, 1 AGP 8X slot |
| Audio Codec | C‑Media CM6501 (7.1 CH) |
| LAN | Realtek PHY RTL8201CL, 10/100 Mbps Ethernet |
| SATA Connectors | 2 × Serial ATA 1.5 Gb/s connectors, RAID 0/1/JBOD, Hot‑Plug |
It uses a Socket 754 compatible with AMD Athlon 64 and Sempron processors.
The motherboard follows the ATX form factor, measuring 12.0 in × 7.5 in (30.5 cm × 19.1 cm).
