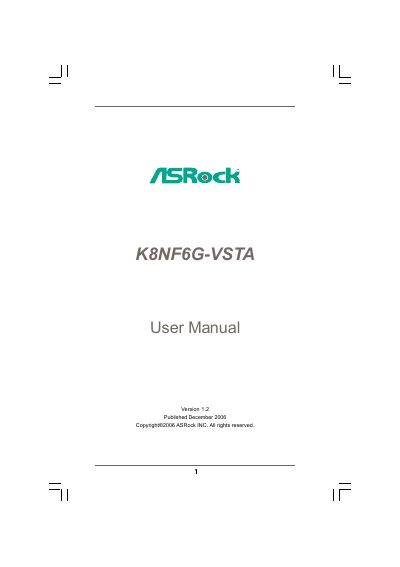

ASRock K8NF6G-VSTA User Manual

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 44
File format: PDF
File size: 576 KB
Published: 02 May, 2012
Updated: 30 September, 2023
Model: K8NF6G-VSTA
MD5 checksum: 88C02B6F43481203D0DBB43C5FF2D1D3
PDF: ASRock K8NF6G-VSTA User Manual PDF

About this manual

This manual covers everything needed to install and configure the ASRock K8NF6G-VSTA motherboard, including package contents, hardware layout, and step‑by‑step installation of CPU, memory, and expansion cards.

It also details BIOS configuration options, software support, and troubleshooting tips such as enabling AMD’s Cool ‘n’ Quiet power‑saving technology and using RAID functions on the SATA connectors.

What's inside

Introduction
Package Contents
Specifications
Minimum Hardware Requirements
Motherboard Layout
Installation
BIOS Setup Utility
Software Support
Appendix: AMD’s Cool ‘n’ Quiet

Specifications

Form Factor	Micro ATX (9.6" x 8.2")
CPU Socket	Socket 754 for AMD Athlon 64 and Sempron
Chipset	NVIDIA GeForce 6100 / nForce 405
Graphics	Integrated NVIDIA GeForce6‑class DX9.0 VGA
Audio Codec	Realtek ALC861VD/ALC883 7.1‑channel
LAN	Realtek PHY RTL8201CL, 10/100 Ethernet
Rear USB Ports	4 ready‑to‑use USB 2.0 ports
SATA Connectors	2 SATAII 3.0 Gb/s ports, RAID 0/1/JBOD

Frequently asked questions

What CPU socket does the K8NF6G-VSTA motherboard use?

It uses a Socket 754 compatible with AMD Athlon 64 and Sempron processors.

How many USB 2.0 ports are available on the rear panel?

The motherboard provides four ready‑to‑use USB 2.0 ports on the back panel.

Does the motherboard support RAID on its SATA connectors?

Yes, the SATAII connectors support RAID 0, RAID 1, and JBOD configurations.

What power‑saving technology is recommended for this board?

Enabling AMD’s Cool ‘n’ Quiet technology under Windows is strongly recommended.
