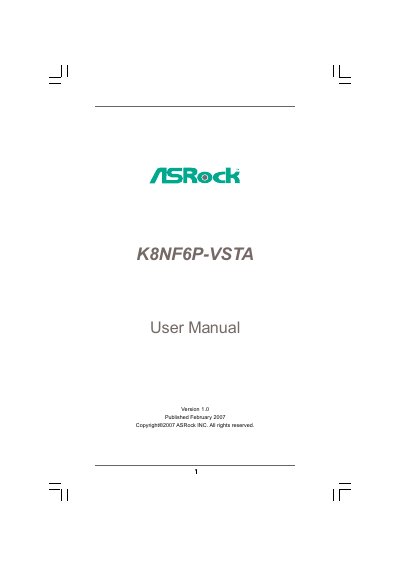

This manual introduces the features and usage of the K8NF6P-VSTA motherboard
This manual introduces the ASRock K8NF6P-VSTA motherboard, covering its features, package contents, and safety notices. It guides users through hardware installation, BIOS setup, and driver installation, and includes troubleshooting and compliance information.
Key sections include detailed specifications, motherboard layout diagrams, step‑by‑step installation of CPU, memory, and expansion cards, BIOS configuration utilities, and support CD contents. The document also outlines minimum hardware requirements for Windows Vista Basic logo certification and provides warranty and regulatory statements.
| Form Factor | Micro ATX (9.6" x 8.2") |
|---|---|
| CPU Socket | Socket 754 for AMD Athlon 64 and Sempron |
| Chipset | NVIDIA GeForce 6100 / nForce 430 (or GeForce 6150SE / nForce 430) |
| Memory Slots | 2 DDR DIMM slots, max 2 GB |
| Integrated Graphics | NVIDIA GeForce 6‑class, DX9.0 VGA, Pixel Shader 3.0, 256 MB shared memory |
| Audio Codec | Realtek ALC883 7.1 CH HD Audio |
| LAN | Realtek RTL8201CL 10/100 Ethernet, Wake‑On‑LAN |
It uses Socket 754 for AMD Athlon 64 and Sempron processors.
The motherboard provides four SATA II connectors that support RAID and hot‑plug functions.
The board can support up to 2 GB of DDR memory.
It uses an NVIDIA GeForce 6100 / nForce 430 (or GeForce 6150SE / nForce 430) chipset.
