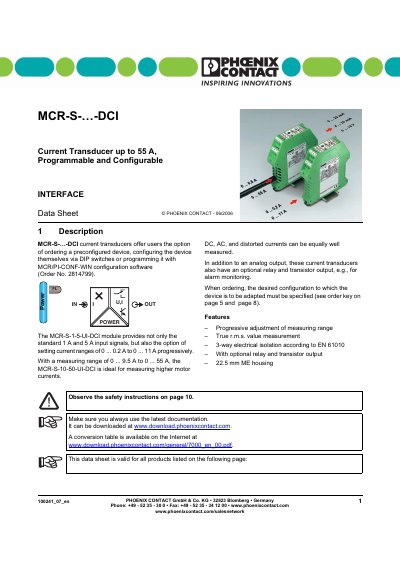

MCR-S-...-DCI current transducers offer users the option of ordering a preconfigured device, configuring the device themselves via DIP switches or programming it with MCR/PI-CONF-WIN configuration software. These current transducers not only provide standard 1A and 5A input signals, but also allow for setting current ranges from 0.2A to 11A progressively. The MCR-S-10-50-UI-DCI is ideal for measuring higher motor currents with a measuring range of 0.55A to 9.5A. In addition, these current transducers also have an optional relay and transistor output for alarm monitoring.
The MCR‑S series DCI current transducers from Phoenix Contact provide true r.m.s. measurement of AC, DC and distorted currents. Users can order a pre‑configured device, set the range via DIP switches, or program the unit with the MCR/PI‑CONF‑WIN software.
The modules are available with analog output as standard and optional relay or transistor outputs for alarm monitoring. They feature 3‑way electrical isolation, IP20 protection, and are suitable for hazardous locations (Class 1, Division 2).
| Supply voltage | 24 V DC |
|---|---|
| Isolation | 3‑way electrical isolation (EN 61010) |
| Output options | Analog output, optional relay and transistor outputs |
| Housing dimensions | 22.5 mm × 99 mm × 114.5 mm |
| Ambient temperature range | -20 °C … 60 °C |
It provides a standard analog output and optional relay or transistor outputs for alarm monitoring.
The transducer operates from a 24 V DC supply.
