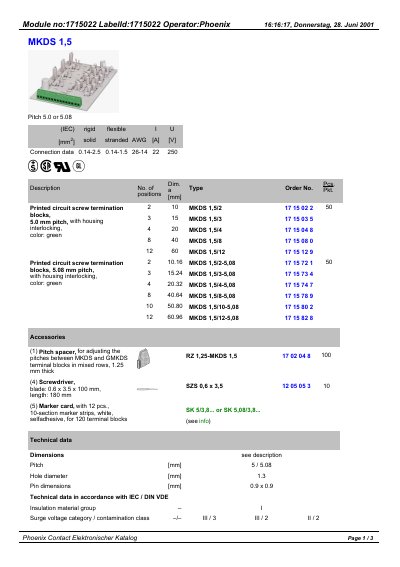

This document describes the features and characteristics of Phoenix Contac's MKDS 1.5 series printed circuit screw termination blocks, including connection data, dimensions, color, number of positions, order numbers, etc.
The document provides detailed specifications for the Phoenix Contact MKDS 1,5 series screw terminal blocks. It covers the two pitch options (5.0 mm and 5.08 mm), green housing color, and available position counts ranging from 2 to 12.
Electrical ratings such as a 250 V rated voltage and a 22 A maximum load current are listed, together with dimensional data, conductor size limits, and optional accessories like pitch spacers, a screwdriver, and marker cards. This manual is written in German.
| Pitch | 5.0 or 5.08 mm |
|---|---|
| Number of Positions | 2, 3, 4, 8, 12 |
| Housing Color | Green |
| Height (a) | 10‑60 mm |
The MKDS 1,5 series is offered with a pitch of 5.0 mm or 5.08 mm.
Available configurations include 2, 3, 4, 8, or 12 positions.
Accessories include a pitch spacer, a screwdriver, and a marker card.
