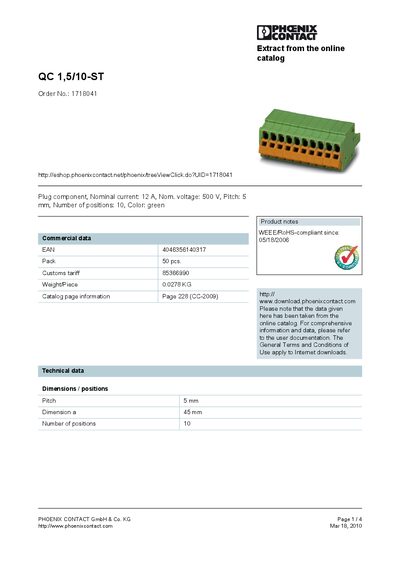

QC 1,5/10-ST is a connector from PHOENIX CONTACT with a nominal current of 12 A, a nominal voltage of 500 V, a pitch of 5 mm, and 10 connection points. The color is green.
The QC 1,5/10-ST is a green‑colored plug component with a 5 mm pitch, 10 positions, and a nominal current of 12 A at 500 V. It is designed for a maximum load current of 10 A and includes detailed dimensions (45 mm length, 5 mm width) and weight of 0.0278 kg per piece.
The component is certified according to CUL and UL standards, with rated surge voltages of 6 kV and rated voltages of 630 V (III/2) and 300 V (II/2). Ordering information, technical drawings, and contact details for Phoenix Contact GmbH & Co. KG are provided in the document.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 500 V |
| Pitch | 5 mm |
| Number of positions | 10 |
| Weight per piece | 0.0278 kg |
| AWG/kcmil | 24‑16 |
| Maximum load current | 10 A |
The nominal current is 12 A.
It has 10 positions.
