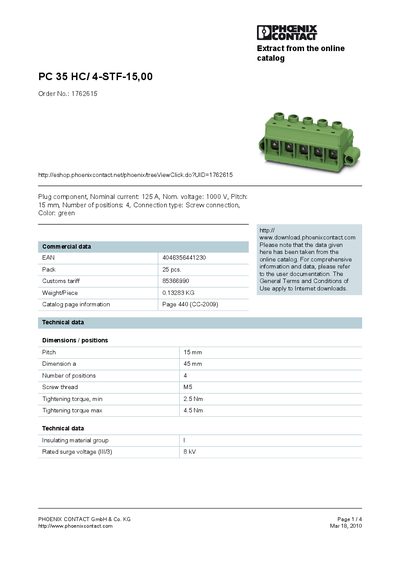

This document provides specifications and characteristics of the PC 35 HC/ 4-STF-15,00 plug component from PHOENIX CONTACT GmbH & Co. KG, including nominal current, nominal voltage, connection type, etc.
The PC 35 HC/4-STF-15,00 is a 4‑position plug component with a screw‑type connection, designed for high‑current applications up to 125 A and a nominal voltage of 1000 V. It features a 15 mm pitch, green housing, and complies with UL‑94 flammability standards.
Key technical data include a minimum tightening torque of 25 Nm, a maximum of 4.5 Nm, a 45 mm overall dimension, M5 screw thread, and a weight of 0.13283 kg per piece. Detailed connection data and conductor cross‑section ranges are provided in the document, along with a diagram illustrating the wiring layout.
| Nominal current | 125 A |
|---|---|
| Nominal voltage | 1000 V |
| Pitch | 15 mm |
| Number of positions | 4 |
| Connection type | Screw connection |
| Color | green |
| Weight per piece | 0.13283 kg |
| Tightening torque (min) | 25 Nm |
| Tightening torque (max) | 4.5 Nm |
| Overall dimension (a) | 45 mm |
| Screw thread | M5 |
The plug is rated for a nominal current of 125 A.
It has a 15 mm pitch and provides four positions.
The recommended tightening torque is a minimum of 25 Nm and a maximum of 4.5 Nm.
The product appears on catalog page 440 (CC‑2009).
