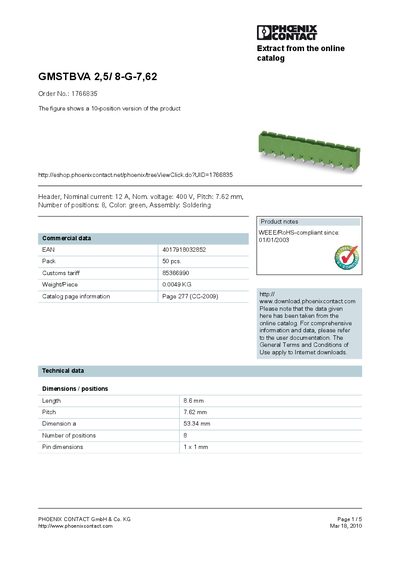

This document describes the features and characteristics of the product GMSTBVA 2,5/ 8-G-7,62 from PHOENIX CONTACT GmbH & Co. KG, including header, nominal current, nominal voltage, etc.
The GMSTBVA 2,5/8‑G‑7,62 is an 8‑position green terminal block with a 7.62 mm pitch, designed for solder‑type assembly. It is rated for 12 A nominal current and 400 V nominal voltage (500 V for certain variants) and complies with RoHS/WEEE standards.
The sheet lists detailed dimensions, pin spacing, certification information (CSA, CUL, UL, VDE‑PZI) and a range of compatible accessories such as keying caps, marker cards and plug adapters. A drilling plan and solder‑pad geometry are also provided.
| Nominal current | 12 A |
|---|---|
| Pitch | 7.62 mm |
| Number of positions | 8 |
| Color | green |
| Assembly type | Soldering |
| RoHS compliance date | 01/01/2003 |
The terminal block is rated for a nominal current of 12 A.
It uses a 7.62 mm pitch between contacts.
Yes, it has been RoHS‑compliant since 01/01/2003.
It is certified by CSA, CUL, UL, and VDE‑PZI.
