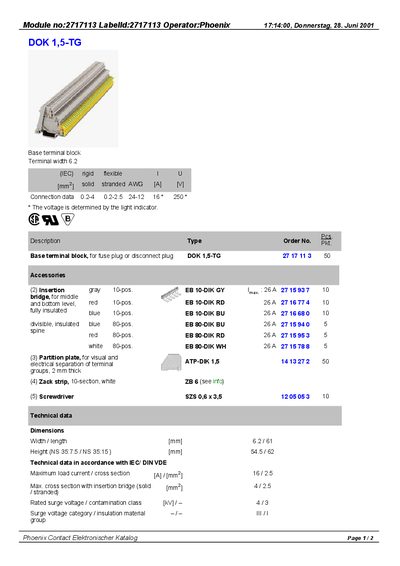

DOK 1,5-TG Base terminal block, for fuse plug or disconnect plug. Max. load current 16 A. Max. cross section 4 mm2. Rated surge voltage 4 kV.
The DOK 1.5 TG is a base terminal block designed for use with fuse plugs or disconnect plugs. It features a terminal width of 6.2 mm and complies with IEC/DIN VDE standards for dimensions and electrical ratings.
The leaflet lists available accessories such as insertion bridges, partition plates, and screwdrivers, and provides detailed connection capacity information for solid and stranded conductors, including stripping lengths, torque values, and approval data (UL and CSA). This manual is written in German.
| Terminal width | 6.2 mm |
|---|---|
| Product type | Base terminal block for fuse plug or disconnect plug |
| Standard compliance | IEC/DIN VDE |
The terminal width is 6.2 mm.
