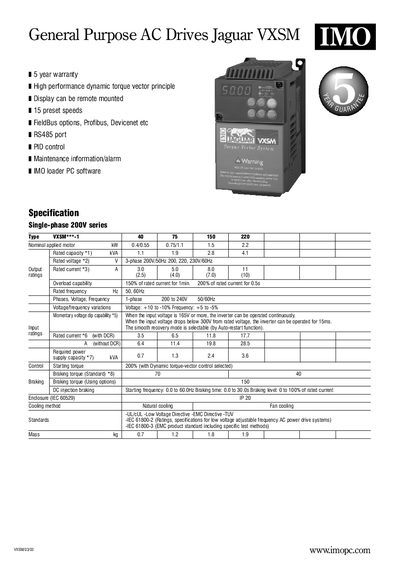

This document is the product manual of IMOPC Jaguar VXSM series AC drives, including product features, technical parameters, models and ordering information.
The VXSM series from IMO Precision is a general‑purpose AC drive available in single‑phase (200 V) and three‑phase (380‑480 V) versions. The manual details the drive’s dynamic torque‑vector control, preset speeds, field‑bus options, and optional DC‑reactor for power‑factor correction.
Key sections cover electrical specifications, installation guidelines, wiring diagrams, terminal functions, protection features, and control methods such as keypad, analog, digital and RS‑485 communication. The document also lists environmental limits and safety precautions for indoor use.
| Rated voltage (single‑phase) | 200 V / 50 Hz |
|---|---|
| Rated voltage (three‑phase) | 380‑480 V / 50‑60 Hz |
| Output rated current (example model 40 kW) | 3.0 A |
| Enclosure rating | IP20 |
| Cooling method | Natural cooling or fan cooling |
The drive can operate at 150 % of rated current for 1 minute and 200 % for 0.5 seconds.
The inverter is rated IP20 according to IEC 60529.
The drive can be cooled naturally or with an optional fan.
