VXM is a high performance AC drive with a rated power of 0.4-400kW. It has a 5 year warranty, high performance open and closed loop operation, speed or torque control, 15 preset speeds, field bus options - Profibus, DeviceNet etc, RS485 port, IMO loader PC software, display remote mounting and maintenance information/alarm.

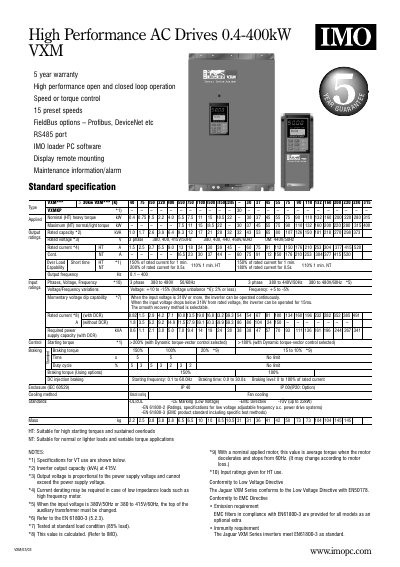

This manual describes the VXM series of high‑performance AC drives covering power ratings from 0.4 kW up to 400 kW. It includes standard specifications, control methods, protection features, and installation guidelines, as well as detailed terminal assignments and wiring diagrams for various models such as VXM40, VXM75, VXM150, and larger units.
The document also provides operating information such as frequency range, voltage options, cooling methods, and fault monitoring. Maintenance data, alarm codes, and configuration options for fieldbus communication (Profibus, DeviceNet, CANopen, etc.) are listed, enabling users to set up, troubleshoot, and service the drives effectively.
| Power range | 0.4‑400 kW |
|---|---|
| Output frequency range | 0.1 Hz – 400 Hz |
| Rated voltage (3‑phase) | 380‑415 V / 50 Hz, 380‑460 V / 60 Hz |
| Rated current (HT) | 1.5 A – 520 A |
| Enclosure IP rating | IP40 (IP00 optional) |
| Cooling method | Natural cooling, optional fan cooling |
| Warranty | 5 years |
The VXM series is covered by a five‑year warranty.
The drives accept a three‑phase input of 380‑415 V at 50 Hz or 380‑460 V at 60 Hz.
It includes overload, over‑voltage, under‑voltage, phase‑loss, overheating, short‑circuit, and ground‑fault protection.
The inverter can be cooled naturally or with an optional fan.
