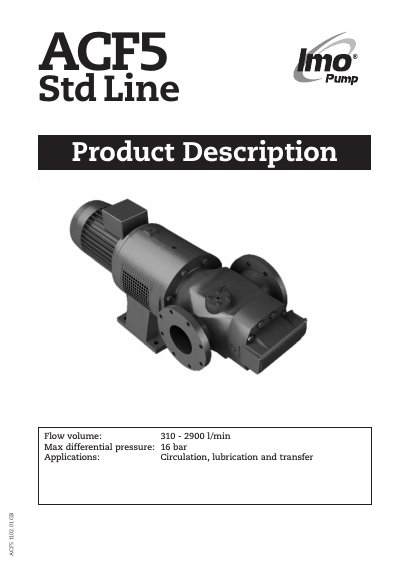

The ACF pump series features flow volume of 310-2900 l/min, maximum differential pressure of 16 bar, and is suitable for various circulation, lubrication and transfer applications. It can be certified according to any of following classification societ- ies: DNV, BV, LRS, ABS, RS, GL, RINA, KR, NK, RMR or CCS.
The IMO ACF5 series pumps are designed for the circulation, lubrication, and transfer of various fluids, including lubrication oil, fuel oil, hydraulic oil, glycol, and polymers. These pumps are suitable for applications such as diesel engine lubrication, turbine lubrication, and hydraulic system circulation. They are typically flange-mounted to an electric motor via a flexible shaft coupling and can be installed horizontally or vertically.
| Max differential pressure | 16 bar |
|---|---|
| Maximum speed | 1800 rpm |
| Maximum inlet pressure | 7 bar |
| Maximum discharge pressure | 16 bar |
| Fluid viscosity range | 14-1500 cSt |
| Fluid temperature range (Cast Iron) | -20 - +90 °C |
| Fluid temperature range (Nodular Cast Iron) | -20 - +130 °C |
The ACF pumps are used for lubrication oil, fuel oil, vegetable oil, hydraulic oil, glycol, polymers, emulsions, and any non-aggressive fluid with sufficient lubricating properties.
Yes, if requested, the ACF pump may be certified according to DNV, BV, LRS, ABS, RS, GL, RINA, KR, NK, RMR or CCS.
The maximum differential pressure is 16 bar, though it is reduced at low viscosities.
The pump is designed to be flange-mounted to its electric motor via a connecting frame and a flexible shaft coupling.
