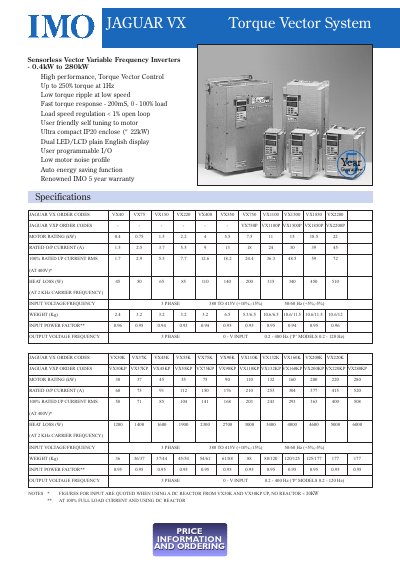

JAQUAR VX Torque Vector System is a high performance inverter with the following features: up to 250% torque at 1Hz, low torque ripple at low speed, fast torque response - 200mS, 0 - 100% load, load speed regulation < 1% open loop, user friendly self tuning to motor, ultra compact IP20 enclose (≤ 22kW), dual LED/LCD plain English display, user programmable I/O, low motor noise profile, auto energy saving function, renowned IMO 5 year warranty.
The IMO JAGUAR VX Torque Vector System is a high-performance sensorless vector variable frequency inverter designed for industrial motor control applications. The system offers power ratings from 0.4kW up to 280kW, featuring advanced torque vector control that delivers up to 250% torque at 1Hz with low ripple and fast response times of 200mS.
| Power Range | 0.4kW to 280kW |
|---|---|
| Torque at Low Speed | Up to 250% torque at 1Hz |
| Torque Response Time | 200mS, 0 - 100% load |
| Load Speed Regulation | < 1% open loop |
| Input Voltage/Frequency (Small Models) | 380 to 415V, 50/60 Hz |
| Input Voltage/Frequency (Large Models) | 380 to 415V, 50/60 Hz |
| Output Frequency Range (Standard) | 0 - INPUT |
The inverter comes with a renowned 5-year warranty.
Yes, the system includes an auto energy saving function.
