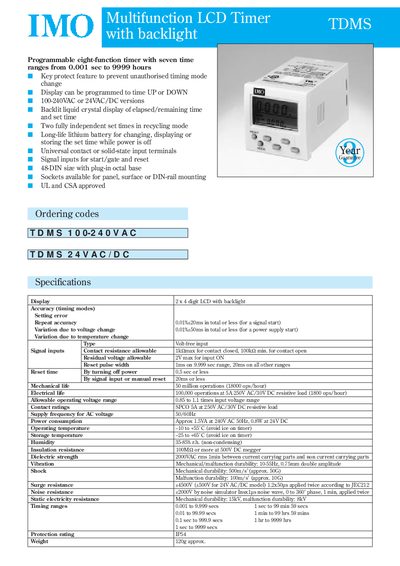

TDMS 100-240VAC/24VAC/DC Multifunction LCD Timer
The IMO ITDMS is a programmable eight‑function timer with a backlit 2‑digit LCD that can count up or down. It is available in 100‑240VAC and 24VAC/DC versions and meets UL and CSA safety standards. The timer offers two independent set times in recycling mode and includes a long‑life lithium backup battery.
Key features include a wide timing range from 0.001 sec to 9999 hours, eight selectable timing modes, robust mechanical and electrical life ratings, and flexible mounting options such as surface, DIN‑rail, and flush mounting. The device operates from –10 °C to +55 °C and provides IP54 protection.
| Supply voltage | 100‑240VAC or 24VAC/DC |
|---|---|
| Display | 2 × 4‑digit LCD with backlight |
| Timing accuracy (signal start) | 0.01 % + 20 ms total or less |
| Mechanical life | 50 million operations (≈18 000 ops/h) |
| Electrical life | 100 000 operations at 5 A / 250 V AC / 30 V DC |
| Power consumption | ≈1.5 VA at 240 V AC, 0.8 W at 24 V DC |
| Operating temperature | -10 °C to +55 °C |
| Weight | ≈120 g |
The timer can be programmed for eight separate timing functions.
It consumes about 1.5 VA at 240 V AC (50 Hz) and about 0.8 W when powered from 24 V DC.
