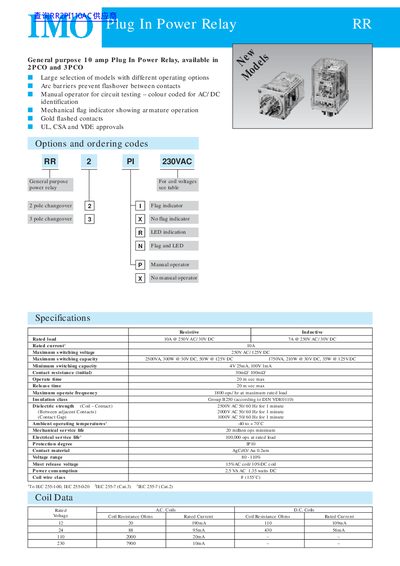

10 amp plug-in power relay, available in I2PCO and 3PCO, with a large selection of models with different operating options. Arc barriers prevent flashover between contacts, and a manual operator for circuit testing is available in a color-coded version for AC/DC identification. A mechanical flag indicator shows armature operation, and gold flashed contacts are standard.
The RR Plug In Power Relay is a general‑purpose 10 A relay offered in 2‑pole (RR‑2) and 3‑pole changeover configurations. It features arc‑barrier contacts, colour‑coded manual operators for AC/DC identification, a mechanical flag indicator, and UL, CSA and VDE certifications.
The relay is rated for 250 V AC/30 V DC at 10 A, with a maximum switching voltage of 250 V AC/125 V DC and a switching capacity up to 2500 VA. It provides a mechanical service life of at least 20 million operations and an electrical life of 100 000 operations at rated load, with IP10 protection and a contact material of AgCdO/Au.
| Rated load | 10 A @ 250 V AC / 30 V DC |
|---|---|
| Maximum switching voltage | 250 V AC / 125 V DC |
| Maximum switching capacity | 2500 VA, 300 W @ 30 V DC, 50 W @ 125 V DC |
| Minimum switching capacity | 4 V 25 mA, 100 V 1 mA |
| Operate time (max) | 20 ms |
| Release time (max) | 20 ms |
| Maximum operate frequency | 1800 ops/hr at rated load |
| Insulation class | Group B250 (DIN VDE 110) |
| Dielectric strength (coil‑contact) | 2500 V AC 50/60 Hz for 1 min |
| Ambient operating temperature | 40 °C to +70 °C |
| Mechanical service life | ≥ 20 million operations |
| Electrical service life | 100 000 operations at rated load |
| Contact material | AgCdO/Au 0.2 µm |
| Power consumption | 2.5 VA AC, 1.35 W DC |
The relay is rated for 10 A at 250 V AC or 30 V DC.
The maximum switching voltage is 250 V AC or 125 V DC.
It is approved by UL, CSA and VDE.
The mechanical service life is at least 20 million operations.
