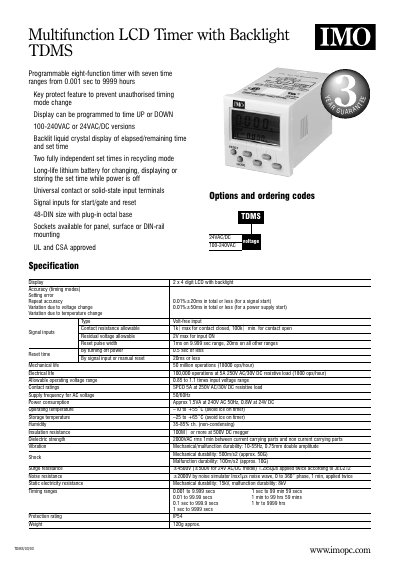

The TDMS is an eight-function programmable timer with seven time ranges from 0.001 sec to 9999 hours. It features a key protect feature to prevent unauthorized timing mode changes, and it can be programmed to time UP or DOWN. It has 100-240VAC or 24VAC/DC versions, with a backlit liquid crystal display of elapsed/remaining time and set time. It features two fully independent set times in recycling mode, and a long-life lithium battery for changing, displaying, or storing the set time while power is off. It has universal contact or solid-state input terminals, signal inputs for start/gate and reset, and a 48-DIN size with plug-in octal base. It has sockets available for panel, surface, or DIN-rail mounting, and it is UL and CSA approved.
The IMO TDMS is a multifunction LCD timer with a backlit 2 × 4‑digit display. It provides eight programmable timing functions, universal contact or solid‑state inputs, and can be powered from 24 VAC/DC or 100‑240 VAC. The timer includes a long‑life lithium battery that retains the set time when power is removed, and it meets UL and CSA safety standards.
The device can be mounted in panel, surface or DIN‑rail configurations and offers robust mechanical and electrical ratings, including 50 million mechanical operations and 100 000 electrical cycles at 5 A. Detailed wiring diagrams and timing mode descriptions are provided to aid installation and integration with IMO sensors for machine monitoring.
| Input voltage | 24VAC/DC 100‑240VAC |
|---|---|
| Display | 2 × 4 digit LCD with backlight |
| Timing accuracy | 0.01% ± 20 ms total |
| Mechanical life | 50 million operations (≈18 000 ops/h) |
| Electrical life | 100 000 operations at 5 A 250 V AC/30 V DC |
| Power consumption | ≈1.5 VA at 240 V AC, 0.8 W at 24 V DC |
| Operating temperature | ‑10 °C to +55 °C |
| Protection rating | IP54 |
The TDMS provides eight programmable timing functions: on‑delay, signal off‑delay, interval (one‑shot), symmetrical re‑cycling, signal on‑delay, on‑delay with power‑off pause, on‑delay integrating, and asymmetrical re‑cycling.
The timer can be powered from either 24 VAC/DC or a wide range of 100‑240 VAC.
Yes, the TDMS has UL and CSA approval.
