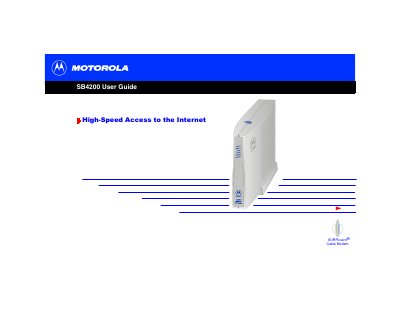

Motorola SB4200 Cable Modem User Guide

This document is the SB4200 user manual, introducing the product's features and functions

Brand: Motorola
Category: Other
Document type: User Manual
Language: English
Pages: 68
File format: PDF
File size: 1.3 MB
Published: 02 May, 2012
Updated: 01 October, 2023
MD5 checksum: B5D1C6A57AEF01F910D8CFC16CC4B015
PDF: Motorola SB4200 Cable Modem User Guide PDF

About this manual

This guide introduces the SURFboard R Cable Modem SB4200 and explains its front‑panel indicators, standby switch, and rear‑panel connectors. It details the required cables, power supply, and safety precautions before installation.

Installation steps cover cabling, USB driver setup for Windows 98/2000/Me, TCP/IP configuration, and verification of the IP address. The manual also includes troubleshooting tips, warranty information, and a software license notice.

What's inside

Introduction
Front Panel Overview
Rear Panel Overview
Installation and Configuration
USB Driver Setup
TCP/IP Configuration
Troubleshooting
Warranty Information

Specifications

Standby Switch	Disables Ethernet and USB ports
Receive LED	Flashing while scanning for a receive channel
Online LED	Flashing while scanning for network configuration
100Base‑T Link Indicator	On when a 100Base‑T link is established

Frequently asked questions

What does the standby button do?

It disables the Ethernet and USB ports, stopping all data transmission until pressed again.

What cables are required for installation?

You need a 75‑ohm coaxial cable with F‑type connectors, a 10/100Base‑T Ethernet cable, a USB cable, and a power cord.

Download PDF (1.3 MB)
