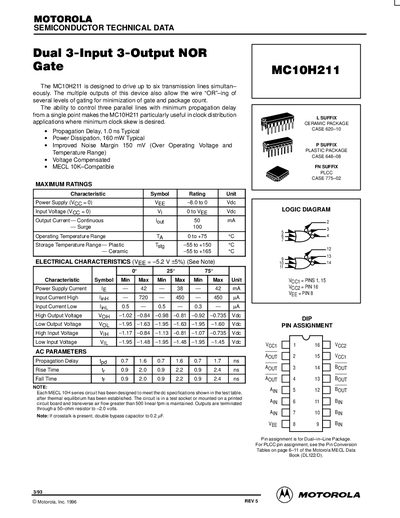

This datasheet is about MC10H211 technical data.
The MC10H211 is a dual 3‑input 3‑output NOR gate designed for clock distribution and wire‑OR applications, offering low propagation delay and high noise margin. It can drive up to six transmission lines simultaneously and supports voltage‑compensated operation.
Key specifications include a typical propagation delay of 1.0 ns, power dissipation of 160 mW, and continuous output current of 50 mA. The device is available in ceramic DIP (CASE 620‑10), plastic DIP (CASE 648‑08), and PLCC (CASE 775‑02) packages, with operating temperature ranges from –40 °C to +75 °C.
| Propagation Delay (typical) | 1.0 ns |
|---|---|
| Power Dissipation (typical) | 160 mW |
| Improved Noise Margin | 150 mV |
| Continuous Output Current | 50 mA |
| Operating Temperature Range | -40 °C to +75 °C |
The typical propagation delay is 1.0 ns.
The MC10H211 is offered in a ceramic DIP package (CASE 620‑10), a plastic DIP package (CASE 648‑08), and a PLCC package (CASE 775‑02).
