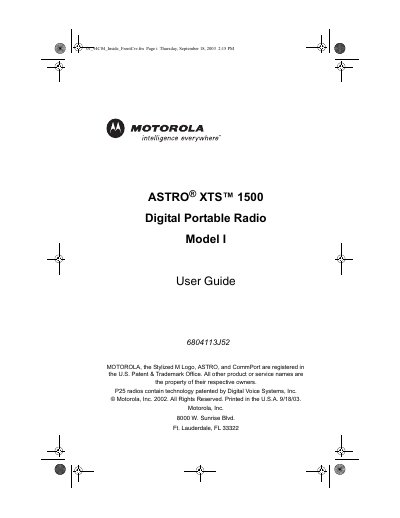

Motorola ASTRO XTS 1500 Model I User Guide

About this manual

This guide begins with product safety and RF exposure compliance, noting that the radio is restricted to occupational use only to meet FCC requirements. It also references the accompanying RF exposure booklet and lists Motorola‑approved accessories.

The manual then describes the radio’s special features such as failsoft, site lock, and trunking controls, followed by detailed sections on physical features, programmable functions, LED indicators, accessories, battery handling, and standard operating procedures including emergency calls, scanning, and warranty information.

What's inside

• Product Safety and RF Exposure Compliance
• Special Radio Features
• Physical Features of the XTS 1500 Model I Radio
• Programmable Features
• LED Indicators
• Standard Accessories
• Battery
• Radio Operation
• Emergency
• Warranty

Specifications

Frequently asked questions

What safety restriction applies to the ASTRO XTS 1500 radio?

The radio is restricted to occupational use only to satisfy FCC RF energy exposure requirements.

How do I activate the emergency alarm on the radio?

Press and hold the Emergency button; a red LED and a short, medium‑pitched tone will indicate the alarm is active.

What does the failsoft feature do?

If the trunking system fails, the radio automatically switches to a failsoft channel and returns to normal operation when the system is restored.

How can I lock the radio to a specific site?

Use the preprogrammed Site Lock/Unlock button to lock or unlock the site, preventing the radio from roaming to other sites.
