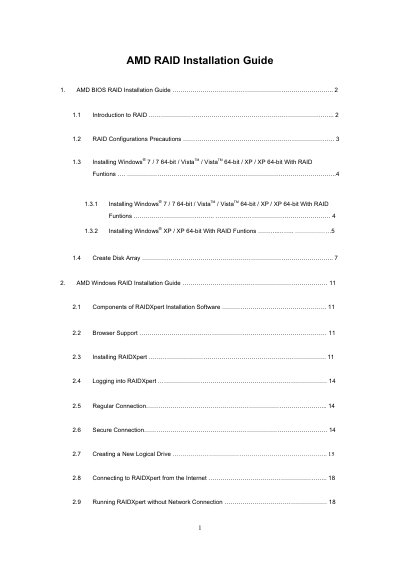

This is a PDF file on AMD Raid installation guide. It introduces AMD Raid's concept, installation methods and usage methods.
The AMD SB950 RAID Installation Guide provides step‑by‑step instructions for setting up RAID arrays using the onboard BIOS utility and the RAIDXpert management software. It covers RAID level selection, disk preparation, and BIOS configuration for RAID mode.
The document also details Windows installation procedures, driver diskette creation, and how to use RAIDXpert for logical drive creation, monitoring, and remote access. Supported browsers, RAID level options, and initialization policies are described for both BIOS and software management.
| Supported RAID levels | RAID 0, RAID 1, RAID 5, RAID 10, RAID Ready, JBOD |
|---|---|
| Maximum physical drives | 4 |
| Supported browsers for RAIDXpert | IE 6.0, Mozilla Suite 1.7, Firefox 1.0, Netscape 7.1 |
| Stripe block size options | 64 KB or 128 KB |
| Write cache policy | None |
Enter the UEFI Setup Utility, go to Advanced → Storage Configuration, and set the “SATA Mode” option to [RAID].
RAIDXpert works with Internet Explorer 6.0, Mozilla Suite 1.7, Mozilla Firefox 1.0, or Netscape Navigator 7.1.
The controller can accommodate up to four physical drives.
Press 2 on the Main Menu screen to open the Define LD Menu, then select the desired RAID level.
