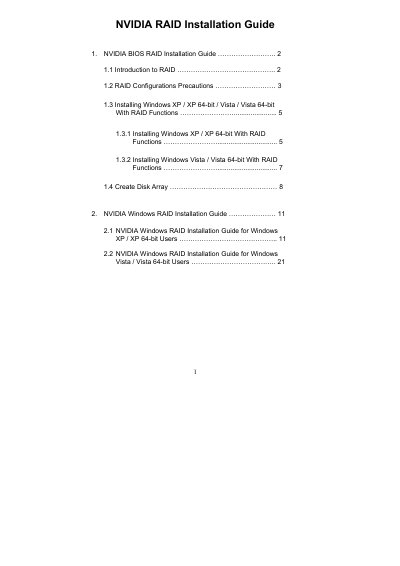

NVIDIA RAID Installation Guide

About this manual

This guide explains how to enable RAID mode in the BIOS, create disk arrays, and install Windows XP, Vista, or their 64‑bit versions using the NVIDIA RAID Utility. It covers RAID configurations, driver preparation, and post‑installation setup.

The document provides detailed procedures for each RAID level (RAID 0, RAID 1, RAID 0+1, JBOD, RAID 5), including recommended drive types, stripe size settings, and troubleshooting tips such as data backup warnings.

What's inside

• Introduction to RAID
• RAID Configurations Precautions
• Installing Windows with RAID Functions
• Create Disk Array
• RAID Utility Settings
• Finalizing RAID Setup

Specifications

Frequently asked questions

How do I enable RAID mode in the BIOS?

Enter the BIOS Setup Utility, go to Advanced → IDE Configuration, and set the “SATA Operation Mode” option to [RAID].

What is the default stripe size for a new RAID array?

The default stripe size is 64 KB, which is the optimal setting.

Which RAID levels are supported by the NVIDIA RAID Utility?

The utility supports RAID 0, RAID 1, RAID 0+1, JBOD, and RAID 5.

What drives should I use when creating a RAID array?

Use two new drives of the same model and capacity for RAID 0 or RAID 1; for RAID 5 use at least three identical drives.
