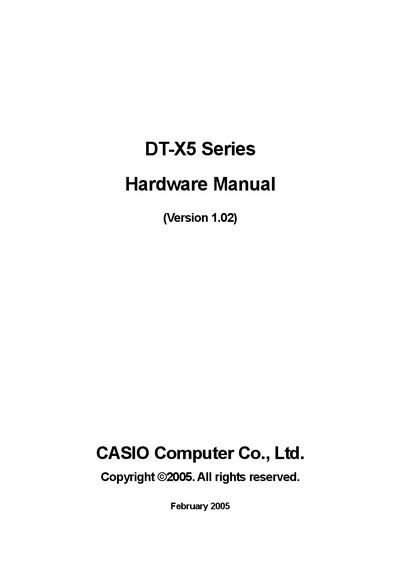

This manual introduces hardware specifications, quality references, environmental performance, electrical performance, mechanical performance, reliability, and compliance information for the DT-X5 series products.
The DT-X5 series is an industrial handheld terminal featuring a 32‑bit SH‑3 processor, Windows CE .NET 4.1 OS, built‑in Bluetooth 1.1, and optional IEEE802.11b wireless LAN. It supports high‑speed laser scanning for 1D barcodes and a C‑MOS imager for 1D and 2D symbologies, with various battery and charger options.
The manual includes safety and handling instructions for the battery pack, power cable, and AC adaptor, as well as a list of accessories, model options, and hardware specifications to ensure reliable operation in industrial environments.
| Operating system | Windows CE .NET 4.1 |
|---|---|
| Wireless LAN transfer rate | 5 Mbps |
| Bluetooth version | 1.1 |
| C‑MOS imager capability | 1D and 2D symbologies |
| Battery pack (HA‑A20BAT) | 1,700 mAh, 3.7 V |
| Large‑capacity battery pack (DT‑5025LBAT) | 3,400 mAh, 3.7 V |
It includes a built‑in Bluetooth 1.1 module and, depending on the model, an IEEE802.11b wireless LAN with a maximum transfer rate of 5 Mbps.
