The document introduces a versatile projector with high brightness and slim design, suitable for corporate and educational installations. It features DLP display technology from Texas Instruments and XGA native resolution, providing superior brightness and image quality. The projector is also multimedia capable, supporting projection of HD video and data images. With a 2x power zoom lens and RS-232 control functionality, it offers flexibility in positioning and easy system integration.
The Casio XJ‑S32 is a super‑slim DLP® projector offering a short‑throw 2X power‑zoom lens, up to 2300 ANSI lumens brightness, and a contrast ratio of 1800:1. It supports a wide range of video resolutions from SVGA to UXGA and includes RS‑232 control, HDMI‑compatible inputs, and a built‑in speaker.

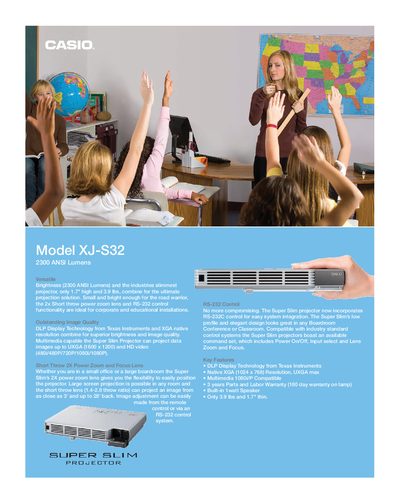

The leaflet lists detailed specifications such as lamp power (210 W high‑pressure mercury lamp), lamp life (up to 2,000 hours), projection range (2.75 ft – 28.2 ft), dimensions (10.63" × 7.83" × 1.69"), weight (3.97 lb), and power consumption (270 W operating, 220 W eco‑mode). It also mentions included accessories, optional accessories, warranty terms, and compatibility with ceiling‑mount installations.
| Brightness (Eco‑Mode OFF) | 2300 ANSI Lumens |
|---|---|
| Brightness (Eco‑Mode ON) | 1700 ANSI Lumens |
| Contrast Ratio | 1800:1 |
| Lamp Power | 210 W |
| Estimated Lamp Life | Up to 2,000 hours |
| Projection Range | 2.75 ft – 28.2 ft |
| Native Resolution | XGA (1024 × 768) |
| Power Consumption (Operating) | 270 W |
| Power Consumption (Eco‑Mode) | 220 W |
| Dimensions | 10.63" × 7.83" × 1.69" |
| Weight | 3.97 lb |
In Eco‑Mode the projector delivers 1700 ANSI lumens.
It uses a high‑pressure mercury lamp rated at 210 W.
The remote controller works up to 16.40 ft.
Yes, a ceiling mount is commercially available.
