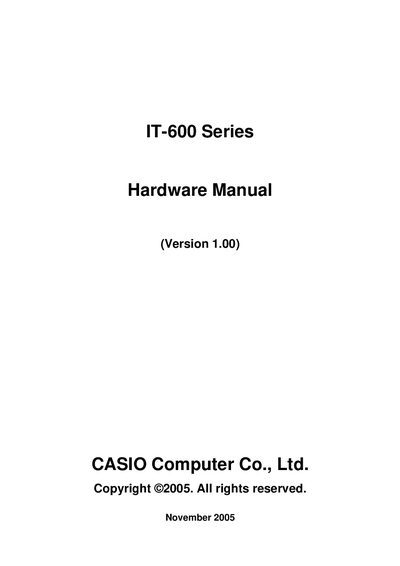

This document is a hardware manual for CASIO Computer Co., Ltd. IT-600 Series. It provides information about the features, available models, options, accessories, and external views of the products.
This manual describes the hardware of the Casio IT-600 series industrial data terminals, including the four models IT-600M30, IT-600M30C, IT-600M30R, and IT-600M30CR. It covers features such as the built‑in Windows CE 5.0 OS, high‑performance CPU, wireless communications, and rugged design.
The document also lists available options (battery packs, chargers, laser attachment, etc.), accessories supplied with each unit, and detailed hardware specifications, environmental performance, and regulatory compliance data.
| Dimensions | Approx. 82 (W) x 166 (D) x 23 (H) mm |
|---|---|
| Weight | Approx. 290 g |
| CPU | Intel® PXA270 Application Processor (Max. 520 MHz) |
| RAM | 64 MB |
| Flash ROM | 128 MB (user area; approx. 60 MB usable) |
| Operating System | Windows® CE 5.0 |
| WLAN | IEEE802.11b/g |
| Bluetooth | Version 1.2 |
| Infrared | IrDA Verl.3 |
| USB Interface | Serial interface with USB 1.1 (Host/Client) |
| IP Rating | IP54 (dust and water‑splash proof) |
| Shock Resistance | Falls from up to 1.2 m |
| Supported Bar‑code Symbologies | UPC‑A/E, EAN, NW‑7, CODE39, CODE93, CODE128/EAN128, ITF, MSI, Industrial 20f5, IATA, RSS‑14, RSS Limited, RSS Expanded |
The IT‑600 series runs Windows® CE 5.0 as its built‑in operating system.
It includes Bluetooth® version 1.2 and a built‑in WLAN module supporting IEEE802.11b/g.
The devices are rated IP54 for dust and water‑splash protection.
