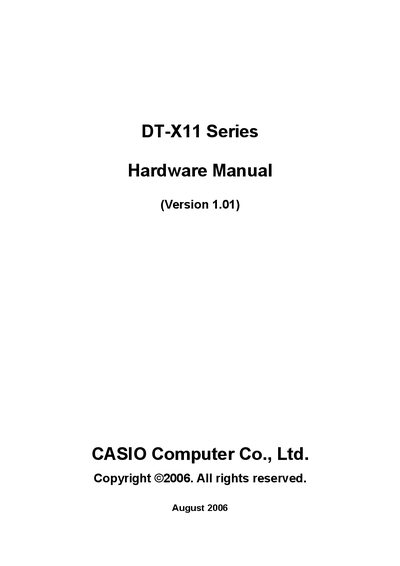

This manual describes the hardware specifications of the DT-X11 series products.
The DT‑X11 series is a rugged handheld terminal designed for transportation, delivery, and logistics. It runs Windows CE 5.0 on a built‑in Intel® PXA255 application processor and offers scanning via a laser scanner or C‑MOS imager.
The manual covers hardware specifications, available models, accessories, safety precautions, battery handling, and compliance information, helping users install, operate, and maintain the device safely.
| Operating System | Windows CE 5.0 |
|---|---|
| Processor | Intel® PXA255 Application Processor |
| Scan Engine | Laser scanner or C‑MOS imager |
| Wireless Communication | Bluetooth and IEEE802.11b WLAN (5 Mbps) |
| Wireless Communication Speed | 5 Mbps |
| Memory | 64 MB – 128 MB |
| Standard Battery Capacity | 1,700 mAh |
| Large‑capacity Battery Capacity | 3,400 mAh |
| AC Adapter Input | 100 V to 230 V AC |
It runs Microsoft Windows CE 5.0.
The terminal supports Bluetooth and IEEE802.11b WLAN, and can also use GPRS via optional cards.
The standard battery pack provides 1,700 mAh capacity.
Do not force the battery in; check polarity before installation to avoid overheating, smoke, or explosion.
