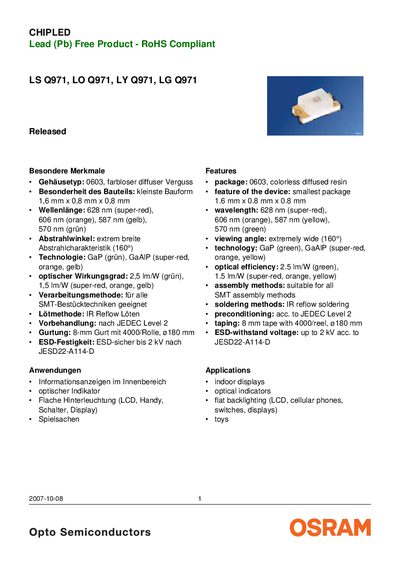

This document describes the features and characteristics of the LS Q971, LO Q971, LY Q971, LG Q971 CHIPLED Lead (Pb) Free products. The product has small size, multiple colors, wide wavelength range, wide viewing angle, high optical efficiency, etc. It is suitable for applications such as information displays, optical indicators, and backlighting.
The LS Q971, LO Q971, LY Q971, and LG Q971 are 0603 colorless diffused resin CHIPLEDs offering the smallest package size (1.6 mm × 0.8 mm × 0.8 mm). They are RoHS‑compliant, lead‑free, and suitable for all SMT assembly methods with IR reflow soldering.
These LEDs are intended for indoor displays, optical indicators, flat backlighting in LCDs, cellular phones, switches, displays, and toys. Key electrical parameters include forward voltage 1.9‑2.6 V, reverse voltage up to 12 V, and an optical efficiency of up to 2.5 Im/W. The components are supplied on 8 mm tape with 4000 units per reel and meet ESD‑withstand up to 2 kV. This manual is written in German.
| Package size | 1.6 mm × 0.8 mm × 0.8 mm |
|---|---|
| Wavelength (green) | 570 nm |
| Wavelength (super‑red) | 628 nm |
| Optical efficiency (green) | 2.5 Im/W |
| Reverse voltage | 12 V |
| Operating temperature range | -30 °C to +85 °C |
| ESD withstand voltage | 2 kV |
| Tape format | 8 mm tape, 4000 units/reel, 2180 mm length |
The LS Q971 LED comes in a 0603 package measuring 1.6 mm × 0.8 mm × 0.8 mm.
The series offers four wavelengths: 628 nm (super‑red), 606 nm (orange), 587 nm (yellow), and 570 nm (green).
They can withstand up to 2 kV ESD according to JESD22‑A114‑D.
