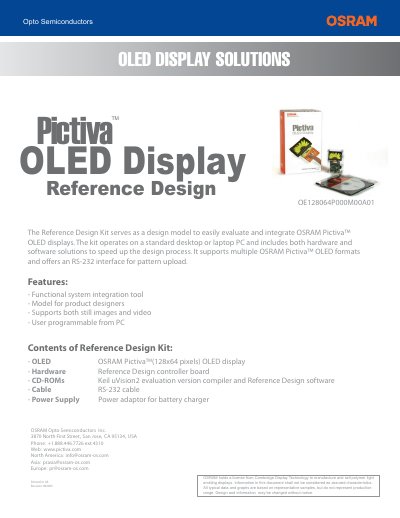

This document introduces the features of Opto Semiconductors OLED Display Reference Design Pictiva TM OLED DISPLAY SOLUTIONS OE128064P000M00A01, which supports both still images and video. Users can program it from PC.
The reference design kit provides a complete solution for evaluating and integrating OSRAM Pictiva™ OLED displays. It includes a hardware controller board, power adaptor, RS‑232 cable, CD‑ROMs with software tools, and documentation such as hardware and software manuals, application notes, and driver setup guides.
The kit runs on a standard PC with Windows 98/NT4.0/2000/ME or XP, requiring at least a 120 MHz Pentium® CPU, 64 MB RAM, 13 MB free disk space, a SVGA (800×600) display, and an RS‑232 port. Ordering information and pricing are provided for North America and Europe.
| Display resolution | 128x64 pixels |
|---|---|
| Interface | RS‑232 |
| Power supply | Power adaptor for battery charger |
| Operating system | Windows 98/NT4.0/2000/ME or XP |
| CPU requirement | 120 MHz Pentium® or compatible |
| Memory requirement | 64 MB RAM |
| Hard disk requirement | 13 MB free space |
