The TA11-A Multifunction Timer provides 4 operation modes: delay on, delay off, one shot and flicker (re-cycling). The timer has 16 ranges that can be selected from the front panel, with timing ranges from 0.05 seconds to 60 hours. The timer has a DPCO output relay for easy time setting and provides instantaneous output when the dial is set to 0. The timer has improved resistance to electromagnetic interference and is UL and CSA approved.

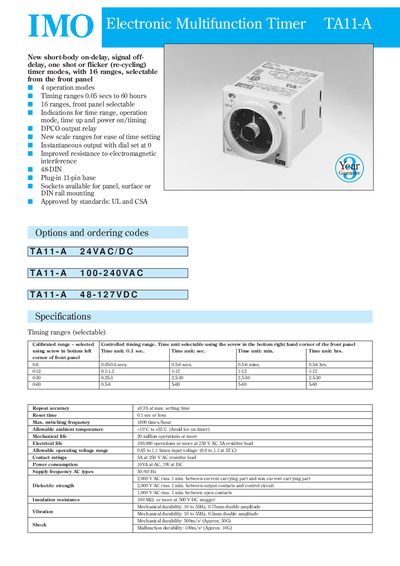

The TA11‑A is a short‑body electronic multifunction timer with four operation modes and a DPCO output relay. Timing ranges are selectable from the front panel and indicated on the display. The device is UL and CSA approved and can be mounted on a DIN rail or flush‑mounted with an adaptor.
The manual includes wiring diagrams, operating mode descriptions, timing diagrams, and detailed specifications such as repeat accuracy, mechanical life, and environmental limits. It also provides ordering options for different voltage versions and mounting accessories.
| Timing range | 0.05 seconds to 60 hours |
|---|---|
| Repeat accuracy | +0.3 % at max. setting time |
| Mechanical life | 20 million operations or more |
| Electrical life | 100 000 operations or more at 250 V AC 5 A resistive load |
| Contact rating | 5 A at 250 VAC resistive load |
| Power consumption | 10 VA at AC, 1 W at DC |
| Maximum switching frequency | 1800 times per hour |
| Ambient temperature range | -10 °C to +55 °C |
| Dielectric strength | 2 000 VAC rms (1 min) between current‑carrying and non‑current parts |
| Insulation resistance | ≥100 MΩ at 500 V DC |
The timer can be set from 0.05 seconds up to 60 hours.
It can switch up to 1800 times per hour.
The contacts are rated for 5 A at 250 VAC resistive load.
It uses 10 VA when powered from AC and 1 W when powered from DC.
