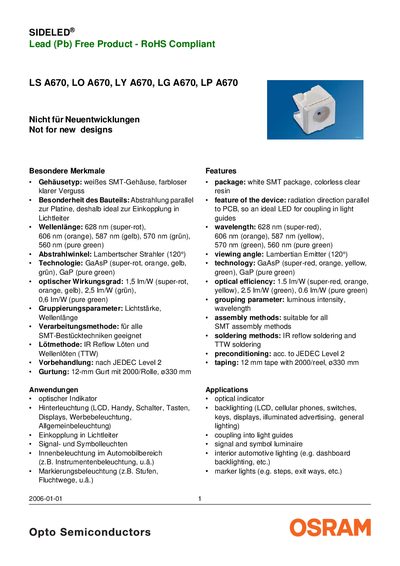

LS A670, LO A670, LY A670, LG A670, LP A670 are SIDELED® series products, with white SMT package, radiation direction parallel to PCB, suitable for LED optical fiber coupling, lighting and signal indication applications.
The OSRAM A670 series includes five LED variants (LS, LO, LY, LG, LP) designed for side‑emitting applications such as backlighting, signal lighting and automotive interior illumination. The devices feature a white SMT package with a clear resin and emit light parallel to the PCB, making them ideal for coupling into light guides.
Key characteristics include multiple wavelength options (super‑red 628 nm, orange 606 nm, yellow 587 nm, green 570 nm, pure‑green 560 nm), a 120° Lambertian viewing angle, and optical efficiencies ranging from 0.6 Im/W (pure‑green) to 2.5 Im/W (green). The LEDs are RoHS‑compliant, lead‑free, and suitable for standard SMT assembly processes. This manual is written in German.
| Wavelength (peak emission) | 628 nm (super‑red), 606 nm (orange), 587 nm (yellow), 570 nm (green), 560 nm (pure‑green) |
|---|---|
| Viewing angle | 120° (Lambertian) |
| Optical efficiency | 1.5 Im/W (super‑red, orange, yellow), 2.5 Im/W (green), 0.6 Im/W (pure‑green) |
| Tape width | 12 mm |
The series is offered in super‑red, orange, yellow, green and pure‑green versions.
