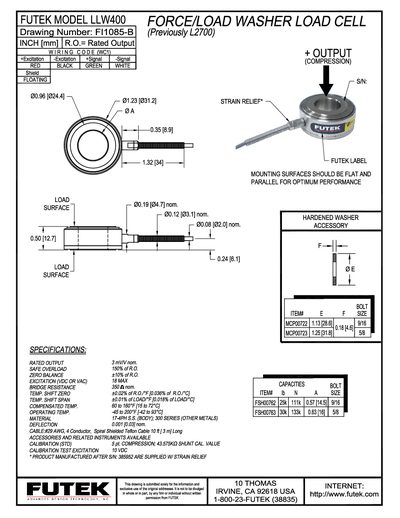

This manual describes the LLW400 force/load washer load cell, including its wiring code, rated output, safe overload, and zero balance specifications. Mechanical mounting requirements and material construction are also detailed.
Additional sections cover calibration procedures, available accessories, and cable information, as well as operating temperature limits and temperature compensation data.
| Rated Output | 3 mV/N |
|---|---|
| Safe Overload | 150 % of R.O. |
| Zero Balance | ±10 % of R.O. |
| Excitation Voltage (max) | 18 V (DC or AC) |
| Bridge Resistance | 350 Ω |
| Compensated Temperature Range | 60 °F to 160 °F (15 °C to 72 °C) |
| Operating Temperature Range | -45 °F to 200 °F (-42 °C to 93 °C) |
| Material | 17‑4PH stainless steel (body) |
| Deflection | 0.001 in (0.03 mm) nominal |
| Cable | #29 AWG, 4‑conductor, spiral shielded Teffon, 10 ft |
The rated output is 3 mV per newton.
It operates from –45 °F to 200 °F (‑42 °C to 93 °C).
The maximum excitation voltage is 18 V, either DC or AC.
The load cell can safely overload up to 150 % of its rated output.
