This document describes the features and characteristics of a MINIATURE SIZE accelerometer with model number 3030B5H, including sensitivity, frequency response, time constant, and operating temperature. The product has excellent linearity and hermetic sealing, making it suitable for high operating temperature environments.
The 3030B5H is a miniature IEPE accelerometer featuring a hermetically sealed stainless‑steel housing and a 10‑32 coaxial connector. It is designed for high‑temperature operation and includes an integral 10‑32 UNF‑2A stud for mounting.

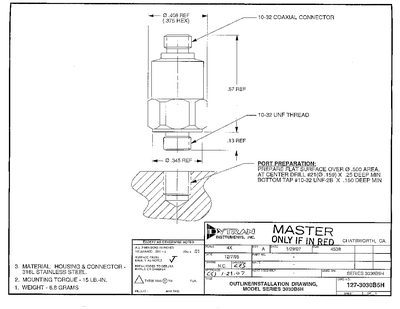

The datasheet provides detailed physical dimensions, electrical characteristics, and environmental limits such as a frequency response up to 10 kHz, resonant frequency of 30 kHz, and maximum shock and vibration ratings. Typical performance values, including sensitivity, output impedance, and bias voltage, are listed for reference.
| Weight | 6.8 grams |
|---|---|
| Housing material | 316L stainless steel |
| Mounting torque | 15 lb‑in |
| Physical size (hex) | 0.375 x 0.067 inches |
| Frequency response | 5 to 10 000 Hz |
| Resonant frequency | 30 kHz |
| Output impedance (typical) | 700 Ω |
| Maximum shock | +3000 G peak |
The housing and connector are made of 316L stainless steel.
The mounting torque is specified as 15 lb‑in.
The device can withstand up to +3000 G peak shock and +1000 G peak vibration.
