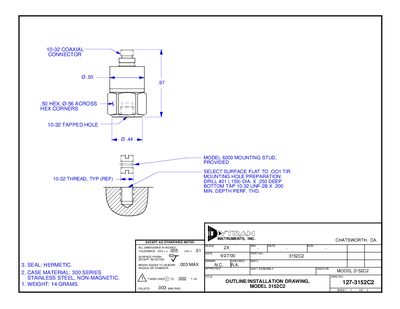

The Dytran 3152C2 is a charge‑mode piezoelectric accelerometer with a stainless‑steel, non‑magnetic case and hermetic seal. It features a top‑mounted 10‑32 coaxial connector and is supplied with a Model 6200 mounting stud.
Key performance parameters include a 1000 g full‑scale range, 2 kHz to 5 kHz frequency response, and a mounted resonant frequency of 25 kHz. The device operates from –65 °F to +500 °F and can withstand up to 3000 g shock and 700 g vibration.
| Full‑scale range | 1000 g |
|---|---|
| Sensitivity | -4.0 %/g (+20%/‑10%) |
| Frequency response | 2 to 5000 Hz |
| Mounted resonant frequency | 25 kHz |
| Amplitude linearity | ±2 % FS |
| Transverse sensitivity (max) | 5 % |
| Capacitance (nominal) | 2300 pF |
| Operating temperature range | -65 °F to +500 °F |
| Maximum shock | 3000 g |
| Maximum vibration | 700 g |
| Output signal polarity | Negative |
| Size (HxL) | 0.50 in × 0.93 in |
| Weight | 14 g |
| Connector type | Top‑mounted 10‑32 coaxial |
| Case material | Stainless steel, 300 series |
| Environmental seal | Hermetic (welded, glass‑to‑metal) |
The full‑scale range is 1000 g.
It operates from –65 °F to +500 °F.
The device weighs 14 grams.
It can survive up to 3000 g shock.
