This document describes the specifications and performance characteristics of the Model 3032A1 miniature quartz shear livm accelerometer, including weight, size, sensitivity, frequency response, peak vibration, and shock.
The Dytran 3032A1 is a miniature quartz shear accelerometer designed for high‑frequency vibration measurement. It features a titanium case, an 18‑inch coaxial connector, and adhesive mounting for easy installation on flat surfaces.

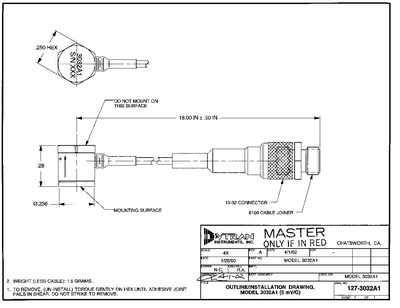

The data sheet lists physical dimensions, weight, performance parameters such as sensitivity and frequency response, environmental limits, and electrical characteristics including excitation voltage and output impedance. It also includes handling instructions for safe removal without damaging the sensor.
| Weight (less cable) | 1.5 grams |
|---|---|
| Weight (including cable) | 5.6 grams |
| Size (hex x height) | 25 x 0.28 inches |
| Mounting provision | Adhesive mount |
| Connector | Coaxial, 10‑32 UNF‑2A jack at end of 18 in cable |
| Case material | Titanium |
| Sensitivity | 5.0 mV/G (±10%) |
| Frequency response (±3 dB) | 0.66 to 12 kHz |
| Maximum vibration | 1500 G RMS |
| Excitation voltage range | +20 to +30 VDC |
Torque gently on the hex until the adhesive joint fails in shear; do not strike the sensor to remove it.
The sensor has a sensitivity of 5.0 mV per G (±10%).
It operates from –60 °C to +250 °C.
The device is rated for a maximum vibration of 1500 G RMS.
