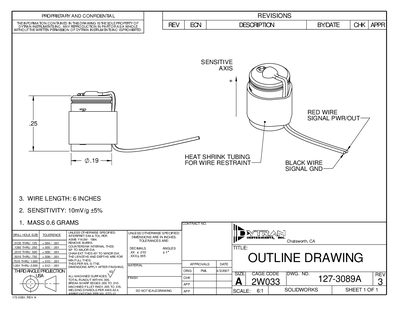

This datasheet provides the preliminary specifications for the Dytran 3089A IEPE accelerometer. It lists physical dimensions, mounting options, and wiring details, as well as performance characteristics such as sensitivity, frequency range, and resonant frequency.
Additional sections cover environmental limits, electrical requirements, and safety notes, including supply current limits and bias voltage specifications. The document is intended for engineers and technicians selecting or integrating the sensor into measurement systems.
| Weight | 0.6 grams |
|---|---|
| Size (Diameter x Height) | 0.19 x 0.25 inch |
| Wire Length | 6 inch |
| Sensitivity | 10.0 mV/g |
| Frequency Range | 1 to 10,000 Hz |
| Resonant Frequency | 50 kHz |
| Temperature Range | -60 to +250 °F |
| Supply Current | 2 to 20 mA |
| Output Impedance | 100 Ω |
| Bias Voltage (nominal) | +10 V |
The sensitivity is 10.0 mV/g (±5%).
It operates from –60 °F to +250 °F.
The device draws 2 to 20 mA.
The output wires are 6 inches long.
