Dytran 3211A1 Accelerometer Datasheet

About this manual

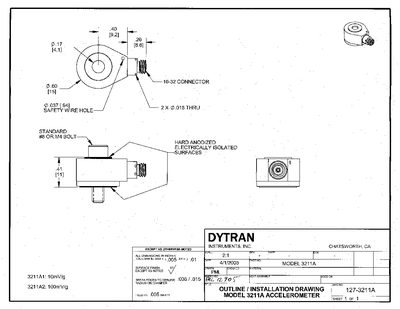

The Dytran 3211A1 is a single‑axis IEPE accelerometer designed for precise vibration measurement. It features a hard‑anodized, electrically isolated housing with a 2×6.018 mm thru‑hole connector and accommodates standard 8‑32 or M4 mounting bolts.

The datasheet provides detailed physical dimensions, performance specifications such as a sensitivity of 10 mV/g, frequency range from 1 Hz to 10 kHz, resonance at 500 Hz, and environmental limits. Electrical characteristics include a supply current of 2 mA, output impedance of 5 kΩ, and a warm‑up time of 5 seconds.

What's inside

• Physical
• Performance
• Environmental
• Electrical
• Performance Specification
• Accessories Supplied
• Mounting
• Connector

Specifications

Frequently asked questions

What mounting bolt size does the 3211A1 use?

It accommodates standard 8‑32 or M4 mounting bolts.

What is the frequency range of the 3211A1 accelerometer?

The device operates from 1 Hz up to 10 kHz.
