The 3225M23 is a miniature IEPE accelerometer, weighing 1 gram and measuring 0.25 x 0.43 x 0.215 inches. It uses a planar shear type piezoceramic element, has a sensitivity of 50 mV/g, and a range of ±100 g. The frequency response is 2 to 10,000 Hz and the mounted resonant frequency is 40 kHz.
The Dytran 3225M23 is a miniature IEPE accelerometer designed for high‑frequency vibration measurement. It features a titanium case, piezoceramic sensing element, and a flat mounting surface for adhesive attachment.
Key specifications include a 1 g weight, 0.25 × 0.43 × 0.215 in size, 50 mV/g sensitivity, and a frequency response from 2 Hz to 10 kHz. The device is supplied with a radially mounted connector compatible only with Dytran cable model 6003AXX and includes accessories such as an installation wrench and a small petro wax.
| Physical weight | 1 gram |
|---|---|
| Size (DIA x LENGTH x HEIGHT) | 0.25 x 0.43 x .215 inch |
| Case material | Titanium |
| Sensing element type | Piezoceramics, planar shear |
| Full‑scale output | ±100 g for ±5 V |
| Mounted resonant frequency | 40 kHz |
| Maximum vibration | 400 grms |
| Temperature range | -60 to +220 °F |
The accelerometer weighs 1 gram.

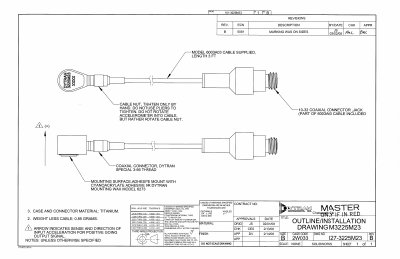

It uses a radially mounted connector that mates only with Dytran cable model 6003AXX.
