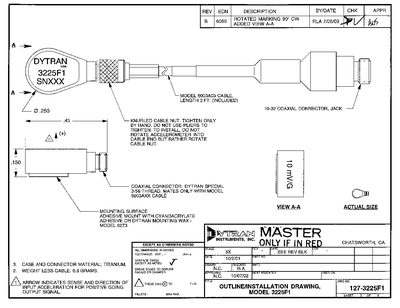

The Dytran 3225F1 is a miniature, titanium‑cased accelerometer with a flat adhesive mounting surface. It features a 3‑56 jack connector that mates only with Dytran cable model 6003AXX. The device is designed for high‑frequency vibration measurement and includes a hermetic, TIG‑welded glass‑to‑metal seal.
Key performance figures include a sensitivity of 10 mV/G, a measurement range up to ±500 G, and a frequency response from 1.6 Hz to 10 kHz. The accelerometer operates from a 5 V supply, with a bias voltage of +10 V and a maximum supply current of 20 mA. Environmental limits cover temperatures from –60 °F to 250 °F, vibration up to 400 G RMS, and shock up to 5000 G peak.
| Weight | 0.6 grams |
|---|---|
| Size (diameter × length × height) | 0.25 × 0.43 × 0.150 inches |
| Case material | Titanium |
| Connector | 3‑56 jack, radially mounted |
| Sensing element type | Quartz, planar shear |
| Maximum vibration | 400 G RMS |
| Maximum shock | 5000 G peak |
| Temperature range | -60 °F to 250 °F |
| Thermal coefficient of sensitivity | 0.03 %/°F |
| Bias voltage | +10 V (nominal) |
| Maximum supply current | 20 mA |
The device weighs 0.6 grams.
It uses a radially mounted 3‑56 jack connector.
The maximum shock rating is 5000 G peak.
