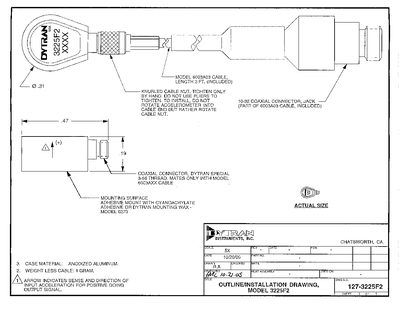

The Dytran 3225F2 is a miniature IEPE accelerometer designed for high‑frequency vibration measurement. It features an anodized aluminum case, a quartz planar‑shear sensing element, and a flat mounting surface for adhesive mounting.
The handbook includes full specifications, a 3‑56 radially mounted connector that mates only with Dytran cable model 6003AXX, bias voltage of +10 V, supply current of 2‑20 mA, and a list of supplied accessories such as the installation wrench and mounting wax.
| Weight | 1 gram |
|---|---|
| Size (DIA x LENGTH x HEIGHT) | 0.31 x 0.48 x 0.19 inch |
| Mounting provision | Flat mounting surface for adhesive mount |
| Connector | 3‑56 radially mounted |
| Case material | Anodized aluminum |
| Sensing element type | Quartz, planar shear |
| Frequency response | 2 Hz to 40 kHz |
| Bias voltage | +10 V nominal |
| Supply current | 2 to 20 mA |
| Output signal polarity | Positive for acceleration toward top |
The 3225F2 accelerometer weighs 1 gram.
It has a flat mounting surface for adhesive mount and can be mounted with cyanoacrylate adhesive or Dytran mounting wax (model 6273).
The device uses a 3‑56 radially mounted connector that mates only with Dytran cable model 6003AXX.
A nominal bias voltage of +10 V is required.
