This document is the product manual of the 3055C accelerometer, which introduces the features and specifications of the product in detail.

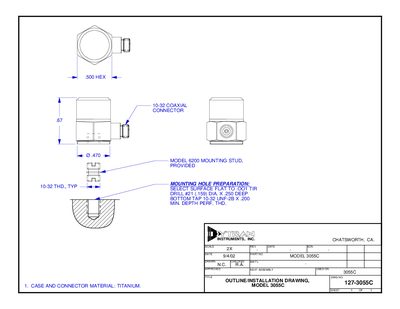

The 3055C accelerometer features a titanium case and base, a 10‑32 coaxial connector, and a mounting provision of a 10‑32 x 0.150 in deep‑tapped hole. It weighs 6 g and measures 0.50 in × 0.67 in.
Performance specifications include a full‑scale range of ±500 g, sensitivity of +5 % at 15 pC/g, frequency range up to 5 kHz, resonant frequency of 32 kHz, and linearity of +1 % FS. Environmental limits cover temperature from –60 °C to +375 °C and vibration/shock up to 600/3000 g peak. Electrical characteristics provide a negative‑polarity output, 10 MΩ isolation, and 975 pF capacitance.
| Weight | 6 g |
|---|---|
| Size | 0.50 in × 0.67 in |
| Mounting provision | 10‑32 x 0.150 in deep‑tapped hole |
| Connector material | Titanium |
| Sensitivity | +5 % (15 pC/g) |
| Full‑scale range | ±500 g |
| Frequency range | 5 kHz |
| Resonant frequency | 32 kHz |
| Linearity | +1 % FS |
| Maximum vibration/shock | 600 g / 3000 g peak |
| Temperature range | -60 °C to +375 °C |
| Output signal polarity | Negative (toward top) |
| Electrical isolation | ≥10 MΩ |
| Capacitance | 975 pF |
The 3055C accelerometer weighs 6 grams.
Its nominal resonant frequency is 32 kHz.
It operates from –60 °C up to +375 °C.
The sensor measures up to ±500 g full scale.
