The Dytran 3220C is a miniature charge‑mode accelerometer designed for high‑frequency vibration measurement. It offers a full‑scale range of 500 g, high sensitivity, and a wide operating temperature range.

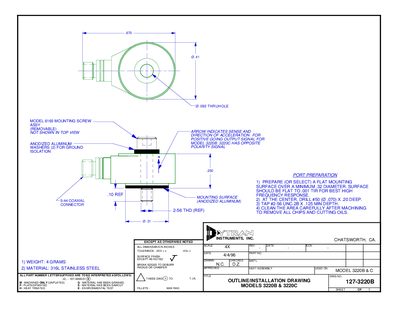

The manual details recommended mounting surface preparation, connector type (5‑44 coaxial), supplied mounting screw assembly, and physical dimensions. Accessories include the Model 6165 mounting screw assembly, and the device is sealed hermetically with a stainless‑steel case.
| Range (Full Scale) | 500 G |
|---|---|
| Sensitivity | 1.5 pC/g |
| Capacitance (Nominal) | 835 pF |
| Natural Frequency (Mounted, Nominal) | 35 kHz |
| Frequency Response | 2 to 5,000 Hz (±5 % / ±15 %) |
| Linearity | 2 %FS |
| Transverse Sensitivity (Max) | 5 % |
| Operating Temperature Range | -60 to +500 °F |
| Maximum Vibration | 2000 G peak |
| Size (Diameter × Height) | 375 × 245 in |
| Weight | 4.0 grams |
| Connector | 5‑44 coaxial |
| Mounting Screw | 2‑56 × 0.437 in long |
| Case Material | 300 series stainless steel |
| Seal | Hermetic, welded/glass to metal |
The package includes a Model 6165 mounting screw assembly.
It operates from –60 °F to +500 °F.
