This document describes the specifications and features of the DYTRAN 3233A triaxial accelerometer, including weight, size, sensitivity, range, frequency response, etc.

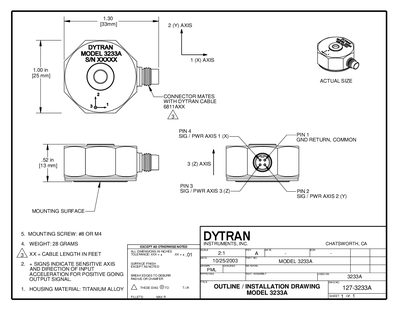

The 3233A accelerometer features a compact titanium‑alloy housing (1.0 × 1.3 × 0.52 in) and weighs only 28 g. It mounts with a #8 (8‑32) or M4 screw and connects via a 4‑pin connector that mates with Dytran cable assemblies.
Performance includes a sensitivity of 1000 mV/g, a full‑scale range of ±5 g per axis, and frequency response up to 3000 Hz (axes 1 & 2) or 6000 Hz (axis 3). Electrical characteristics provide a typical output impedance of 100 Ω, supply voltage of +18 to +30 VDC, and supply current of 2 to 20 mA. The sensor operates from –60 °F to +200 °F and tolerates up to 500 g vibration and 5000 g shock.
| Weight | 28 grams |
|---|---|
| Size (H × W × D) | 1.0 × 1.3 × 0.52 inches |
| Mounting screw | #8 (8‑32) or M4 |
| Connector type | 4‑pin |
| Case material | Titanium alloy |
| Full‑scale range | ±5 g per axis |
| Frequency response (axes 1 & 2) | -4 to 3000 Hz |
| Frequency response (axis 3) | -4 to 6000 Hz |
| Natural frequency | 20 kHz |
| Output impedance | 100 Ω |
| Supply voltage | +18 to +30 VDC |
| Temperature range | -60 °F to +200 °F |
| Maximum vibration | +500 g |
| Maximum shock | 5000 g |
It mounts with a #8 (8‑32) or M4 screw.
The sensor uses a 4‑pin connector that mates with Dytran cable assembly model 6811Axx.
Each axis has a full‑scale range of ±5 g and a sensitivity of 1000 mV/g.
It operates from –60 °F to +200 °F.
