The 3092C high temperature charge mode accelerometer has a 10-32 coaxial connector and a high temperature range.

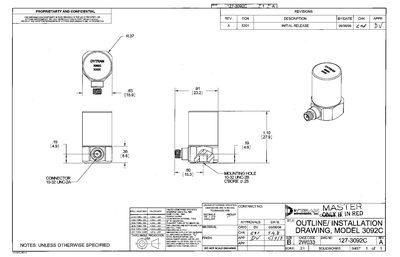

The Dytran 3092C is a high‑temperature, charge‑mode accelerometer designed for harsh environments. The document provides the mechanical drawing, connector details, and revision history for the instrument.
Performance specifications include frequency range, resonance frequency, insulation resistance, and operating temperature limits. The sheet also notes that each unit is supplied with an accredited ISO‑17025 calibration certificate.
| Connector type | 10-32 coaxial |
|---|---|
| Frequency range tolerance | +10% |
| Insulation resistance (room temperature) | 5000/3000 |
The model number is 3092C.
It uses a 10-32 coaxial connector.
Yes, each instrument includes an accredited ISO 17025 calibration certificate.
