This document describes the features of the Model 6200 mounting stud and the Model 3056C accelerometer from ECN DATE INSTRUMENTS, Inc. The mounting stud is made of titanium, and the accelerometer is made of ceramic and titanium. The accelerometer weighs 6 grams and has dimensions of 0.50 x 0.97 inches, with a 10-32 threaded hole and a top-mounted 10-32 coaxial connector. The sensitivity of the accelerometer is -15 pC/G, with a measurement range of ± 500 G, a frequency range of ± 5% to 5000 Hz, and a resonant frequency of 32 kHz.

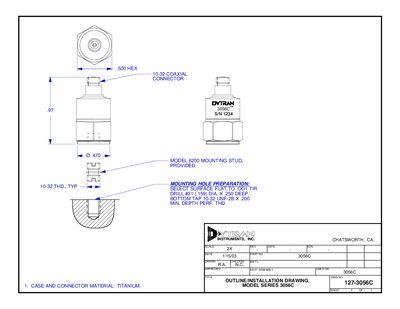

This specifications manual describes the Dytran 3056C charge mode accelerometer, a titanium‑cased sensor with a 10‑32 coaxial top‑mounted connector. It includes mounting details, such as a 10‑32 x .150 deep tapped hole and a supplied Model 6200 mounting stud.
Key characteristics are listed under Physical, Performance, Environmental and Electrical sections, covering weight, dimensions, sensitivity, frequency range, resonant frequency, temperature limits, sealing method, and output signal polarity.
| Weight | 6 grams |
|---|---|
| Size | 0.50 x 0.97 inches |
| Mounting provision | 10‑32 x .150 deep tapped hole |
| Connector material | Titanium |
| Seismic element type | Ceramic, planar shear |
| Sensitivity (nominal) | -15 pC/g |
| Frequency range | +5 % to 5000 Hz |
| Resonant frequency | 32 kHz |
| Maximum vibration/shock | 600 g / 3000 g peak |
| Temperature range | -60 °C to +375 °C |
| Seal type | Hermetic glass‑to‑metal, TIG welded |
| Output signal polarity | Negative for acceleration toward top |
| Electrical isolation | 10 MΩ minimum |
| Capacitance | 975 pF |
The accelerometer weighs 6 grams.
Its frequency range is from +5 % to 5000 Hz.
The connector is made of titanium.
It can operate up to +375 °C.
